Three-dimensional finite element analysis of different pontic designs in the extraction area of clear aligners during the distalization of canine

doi:10.11958/20251185

Abstract

Abstract:

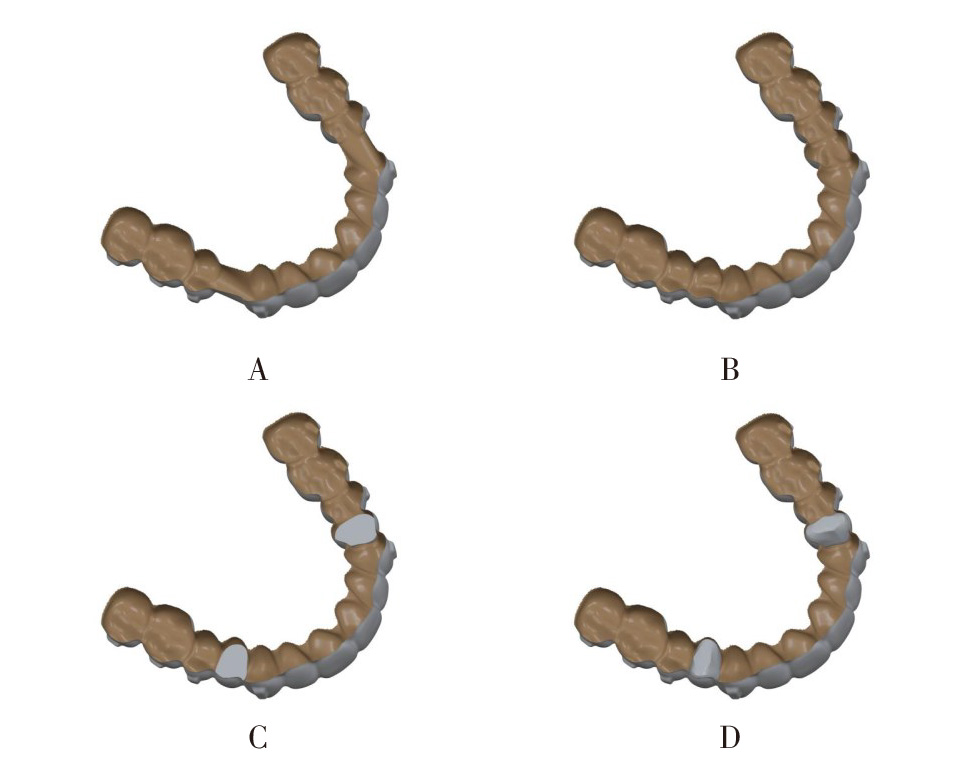

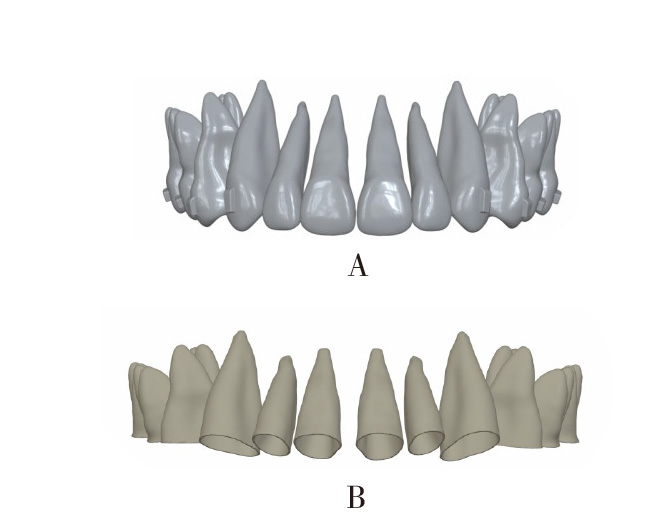

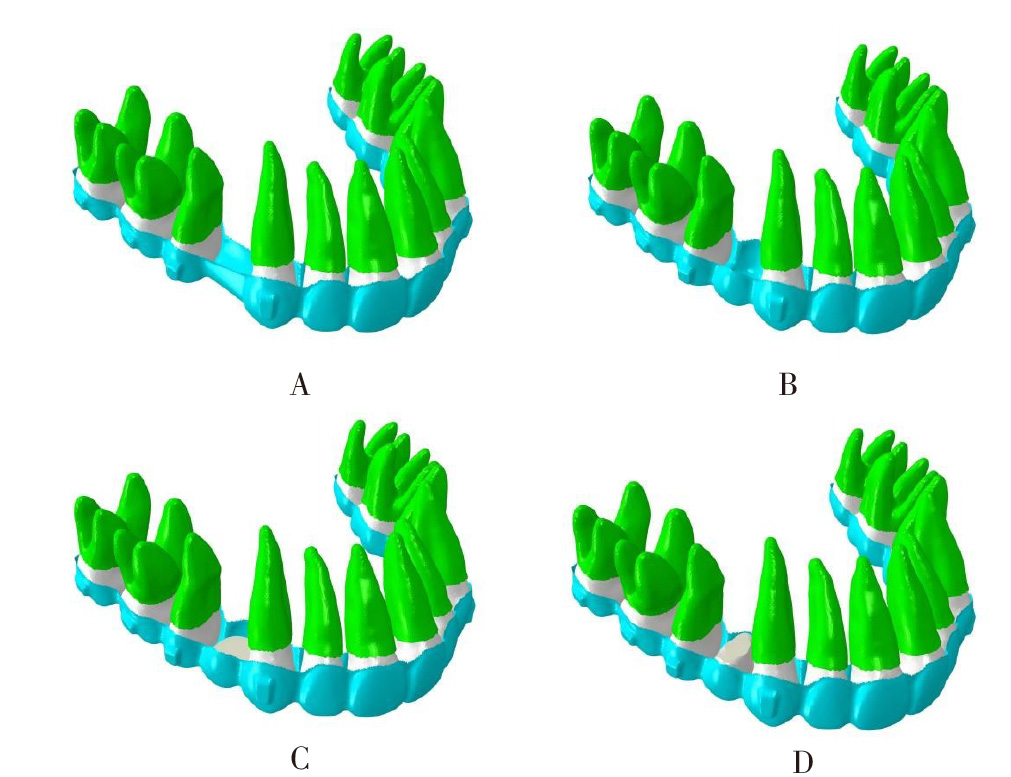

Objective To explore the effect of different pontic designs in resisting stress interruption effect and roller coaster phenomenon through three-dimensional finite element analysis, providing clinical guidance for the application of clear aligners in extraction cases. Methods Four three-dimensional finite element models of different pontic designs in the extraction area of clear aligners were established, including the pontic-free connection design, the conventional hollow pontic design, the partially solid-filled pontic design and the fully solid-filled pontic design. All four aligner models were individually assembled with the dental arch model. A 0.2 mm distal movement of the canine was simulated to observe the initial displacement and periodontal ligament stress distribution of canine and second premolar in each group of models. Results The initial displacement tendency diagram revealed that in all experimental conditions, both the canine and second premolar exhibited tipping movement patterns. However, significant variations in initial displacement magnitudes were observed across different pontic designs. The fully solid-filled pontic-connected clear aligner model exhibited the greatest initial displacement values (both crown and root) and the maximum initial displacement magnitude. Notably, this kind of design displayed movement characteristics closer to bodily movement, indicating superior control efficacy in tooth positioning. Periodontal ligament stress analysis revealed that the fully solid-filled pontic-connected clear aligner model generated the highest maximum principal stress in the periodontal ligament.Conclusion This three-dimensional finite element study reveals that the application of solid-filled pontic in clear aligner therapy could improve biomechanical control at extraction sites by minimizing aligner distortion, reducing stress interruption effect and preventing the roller coaster phenomenon.

Key words: tooth abnormalities, orthodontic appliances, finite element analysis, clear aligner technology

CLC Number:

R783.5

Figures/Tables 9

References 17

[1]	GAO M, YAN X, ZHAO R, et al. Comparison of pain perception,anxiety,and impacts on oral health-related quality of life between patients receiving clear aligners and fixed appliances during the initial stage of orthodontic treatment[J]. Eur J Orthod, 2021, 43(3):353-359. doi:10.1093/ejo/cjaa037.
[2]	LIU J, ZHU G, WANG Y, et al. Different biomechanical effects of clear aligners in closing maxillary and mandibular extraction spaces:finite element analysis[J]. Am J Orthod Dentofacial Orthop, 2023, 163(6):811-824. doi:10.1016/j.ajodo.2022.07.021.
[3]	QIAN Y, TANG Z, CHEN Y, et al. The “roller coaster effect” in premolar extraction cases:clear aligners vs. straight-wire appliance[J]. Eur J Orthod, 2024, 47(1):cjae072. doi:10.1093/ejo/cjae072.
[4]	LYU X, CAO X, YAN J, et al. Biomechanical effects of clear aligners with different thicknesses and gingival-margin morphology for appliance design optimization[J]. Am J Orthod Dentofacial Orthop, 2023, 164(2):239-252. doi:10.1016/j.ajodo.2022.12.014.
[5]	QIANG R, GAO J, WANG Y, et al. Anchorage loss of the posterior teeth under different extraction patterns in maxillary and mandibular arches using clear aligner:a finite element study[J]. BMC Oral Health, 2024, 24(1):1204-1216. doi:10.1186/s12903-024-04951-x.
[6]	AHMED T, PADMANABHAN S, POTTIPALLI SATHYANARAYANA H, et al. Effects of varying attachment positions on palatal displacement of maxillary incisors with clear aligner therapy:A three-dimensional finite element analysis[J]. Orofac Orthop, 2023, 84(3):178-188. doi:0.1007/s00056-021-00374-3.
[7]	张馨匀, 韩易辰, 江浩, 等. 新型交叉颊面管对第二前磨牙拔除后的支抗效果评估[J]. 天津医药, 2024, 52(9):977-981.
	ZHANG X Y, HAN Y C, JIANG H, et al. Evaluation of the anchorage effect of a new cross buccal tube in the treatment of second premolar extraction[J]. Tianjin Med J, 2024, 52(9):977-981. doi:10.11958/20240487.
[8]	马晓晴, 项飞, 樊明月, 等. 微种植钉辅助无托槽隐形矫治器控制“过山车”效应的疗效分析[J]. 上海口腔医学, 2022, 31(2):193-197.
	MA X Q, XIANG F, FAN M Y, et al. Clinical efficacy of the combination of miniscrew with clear aligner in controlling the roller coaster effect[J]. Shanghai Journal of Stomatology, 2022, 31(2):193-197. doi:10.19439/j.sjos.2022.01.015.
[9]	KANG F, WU Y, CUI Y, et al. The displacement of teeth and stress distribution on periodontal ligament under different upper incisors proclination with clear aligner in cases of extraction:a finite element study[J]. Prog Orthod, 2023, 24(1):38-47. doi:10.1186/s40510-023-00491-2.
[10]	ZHANG Y, WANG K, LI M, et al. Effects of different intrusion patterns during anterior teeth retraction using clear aligners in extraction cases:an iterative finite element analysis[J]. Front Bioeng Biotechnol, 2024,12:1388876. doi:10.3389/fbioe.2024.1388876.
[11]	BICHU Y, ALWAFI A, LIU X, et al. Advances in orthodontic clear aligner materials[J]. Bioact Mater, 2023, 22:384-403. doi:10.1016/j.bioactmat.2022.10.006.
[12]	GRANT J, FOLEY P, BANKHEAD B, et al. Forces and moments generated by 3D direct printed clear aligners of varying labial and lingual thicknesses during lingual movement of maxillary central incisor:an in vitro study[J]. Prog Orthod, 2023, 24(1):23-47. doi:10.1186/s40510-023-00475-2.
[13]	杨天梅, 王婧, 马福娟, 等. 不同厚度及刚性隐形矫治器内收上颌前牙有限元分析[J]. 中国组织工程研究, 2025, 29(22):4671-4678.
	YANG T M, WANG J, MA F J, et al. Finite element analysis of internally retracted maxillary anterior teeth with clear aligners of different thicknesses and stiffness[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(22):4671-4678. doi:10.12307/2025.435.
[14]	ALHASYIMI A A, AYUB A, FARMASYANTI C A, et al. Effectiveness of the attachment design and thickness of clear aligners during orthodontic anterior retraction:Finite element analysis[J]. Eur J Dent, 2024, 18(1):174-187. doi:10.1055/s-0043-1761452.
[15]	MAO B, TIAN Y, XIAO Y, et al. Biomechanical effects of clear aligner with different shape design at extraction space area during anterior teeth retraction[J]. Orthod Craniofac Res, 2024, 27(5):740-749. doi:10.1111/ocr.12795.
[16]	JIN X, TIAN X, LEE ZHI HUI V, et al. The effect of enhanced structure in the posterior segment of clear aligners during anterior retraction:a three-dimensional finite element and experimental model analysis[J]. Prog Orthod, 2024, 25(1):3-13. doi:10.1186/s40510-023-00502-2.
[17]	WANG Y, ZHU G, LIU J, et al. Dynamic biomechanical changes of clear aligners during extraction space closure:Finite element analysis[J]. Am J Orthod Dentofacial Orthop, 2024, 165(3):272-281. doi:10.1016/j.ajodo.2023.08.017.

组别	节点数	单元数
组合模型1	205 195	333 679
组合模型2	206 254	335 767
组合模型3	212 213	361 155
组合模型4	216 416	381 990

组别	节点数	单元数
组合模型1	205 195	333 679
组合模型2	206 254	335 767
组合模型3	212 213	361 155
组合模型4	216 416	381 990

材料	弹性模量/MPa	泊松比
牙列及附件	19 600	0.30
牙周膜	0.05	0.49
无托槽隐形矫治器	528	0.40

材料	弹性模量/MPa	泊松比
牙列及附件	19 600	0.30
牙周膜	0.05	0.49
无托槽隐形矫治器	528	0.40

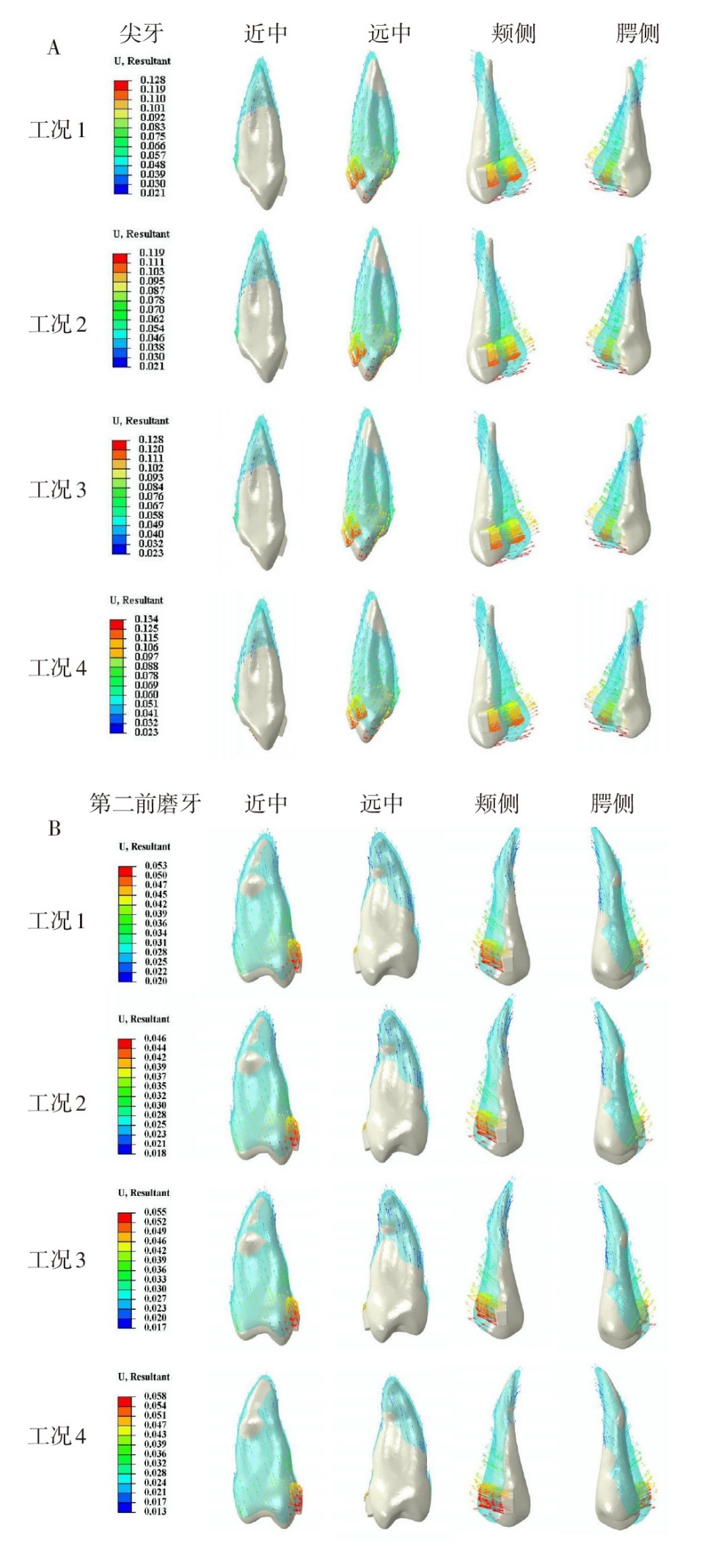

牙位	工况	最大位移量/mm	根尖点位移/mm	颊侧牙尖点位移/mm	R/C 比值
尖牙	工况1	0.128	0.056	-0.121	-0.462
	工况2	0.119	0.052	-0.112	-0.467
	工况3	0.128	0.056	-0.120	-0.464
	工况4	0.134	0.058	-0.125	-0.461
第二前磨牙	工况1	0.053	-0.018	0.036	-0.490
	工况2	0.046	-0.016	0.031	-0.498
	工况3	0.055	-0.018	0.038	-0.479
	工况4	0.058	-0.019	0.042	-0.460
