The evaluation value of CTP and CTA combined with serum NSE in collateral circulation status and prognosis of patients with post-stroke hemiplegia

doi:10.11958/20250127

Abstract

Abstract:

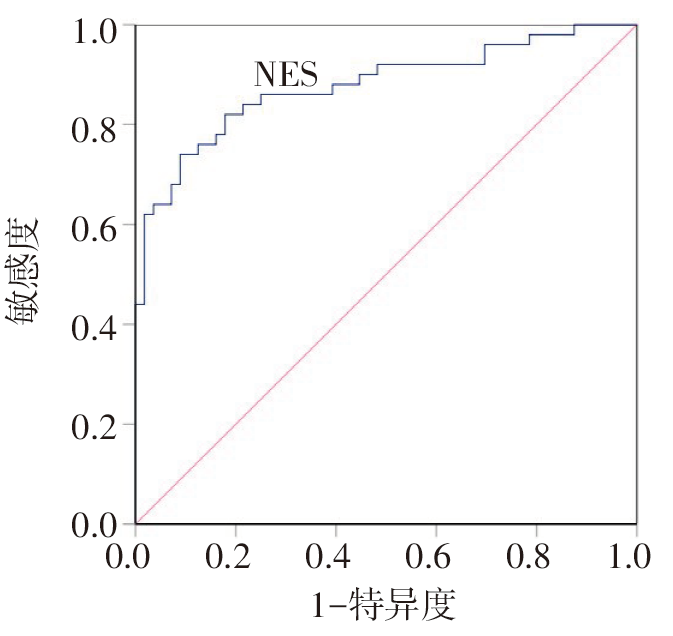

Objective To investigate the value of CT perfusion imaging (CTP) and CT angiography (CTA) combined with serum neuron-specific enolase (NSE) in assessing the status and prognosis of collateral circulation (CC) in hemiplegic patients with stroke. Methods A total of 106 patients with stroke hemiplegia were selected in this study. All patients underwent CTA and CTP, and patients were classified into the good CC group (n=67) and the poor CC group (n=39) based on CTA images. Patients were also classified into the good prognostic group (n=56) and the poor prognostic group (n=50) based on modified Rankin Scale (mRS) scores after 3 months of treatment. Enzyme-linked immunosorbent assay (ELISA) was used to detect serum NSE levels. Pearson correlation analysis was used to analyse the correlation between CC scores and CTP parameters and serum NSE levels. The receiver operating characteristic (ROC) curve was used to analyze the evaluation value of serum NSE for the prognosis of hemiplegic patients after stroke. Kappa test was used to analyse the consistency of the prognosis and follow-up results of hemiplegic stroke patients assessed by CTP and CTA alone and in combination with serum NSE. Results The CTP parameters rCBF and rCBV were lower in the poor CC group than those in the good CC group (P<0.05), and levels of rTTP, rMTT and serum NSE were higher than those in the good CC group (P<0.01). CC score was positively correlated with rCBF and rCBV, and negatively correlated with rTTP, rMTT and serum NSE levels (P<0.05). The rCBF and rCBV were lower in the poor prognosis group than those in the good prognosis group, and the proportion of poor CC, rTTP, rMTT, serum NSE level and mRS score were higher than those in the good prognosis group (P<0.01). The area under the curve of serum NSE alone for predicting poor prognosis in hemiplegic patients with stroke was 0.878 (95%CI: 0.800-0.934), with a sensitivity of 74.00% and a specificity of 91.07%, which was in good agreement with the results of the follow-up (Kappa value=0.654, P<0.001). Conclusion CTP, CTA combined with serum NSE have a relatively high evaluation value for the assessment of the CC status and prognosis of stroke patients with hemiplegia.

Key words: tomography, X-ray computed, perfusion imaging, computed tomography angiography, stroke, hemiplegia, collateral circulation, prognosis

CLC Number:

R743.3

Figures/Tables 6

References 22

[1]	MARTIN S S, ADAY A W, ALMARZOOQ Z I, et al. 2024 Heart disease and stroke statistics:a report of US and global data from the american heart association[J]. Circulation,2024, 149(19):e1164. doi:10.1161/CIR.0000000000001247.
[2]	ALHUNEAFAT L, TA'ANI O A, TARAWNEH T, et al. Burden of cardiovascular disease in sub-saharan africa,1990-2019:an analysis of the global burden of disease study[J]. Curr Probl Cardiol, 2024, 49(6):102557. doi:10.1016/j.cpcardiol.2024.102557.
[3]	FUKUDA K A, LIEBESKIND D S. Evaluation of collateral circulation in patients with acute ischemic stroke[J]. Radiol Clin North Am, 2023, 61(3):435-443. doi:10.1016/j.rcl.2023.01.002.
[4]	SAVER J L, GOYAL M, VAN DER LUGT A, et al. Time to treatment with endovascular thrombectomy and outcomes from ischemic stroke:a meta-analysis[J]. JAMA, 2016, 316(12):1279-1288. doi:10.1001/jama.2016.13647.
[5]	PUIG J, SHANKAR J, LIEBESKIND D, et al. From "Time is brain" to "imaging is brain":a paradigm shift in the management of acute ischemic stroke[J]. J Neuroimaging, 2020, 30(5):562-571. doi:10.1111/jon.12693.
[6]	UNIKEN VENEMA S M, DANKBAAR J W, VAN DER LUGT A, et al. Cerebral collateral circulation in the era of reperfusion therapies for acute ischemic stroke[J]. Stroke, 2022, 53(10):3222-3234. doi:10.1161/STROKEAHA.121.037869.
[7]	KUREK K, SWIECZKOWSKI D, PRUC M, et al. Predictive performance of neuron-specific enolase (NES) for survival after resuscitation from cardiac arrest:a systematic review and meta-analysis[J]. J Clin Med, 2023, 12(24):7655. doi:10.3390/jcm12247655.
[8]	RUI T, LI Q, SONG S, et al. Ferroptosis-relevant mechanisms and biomarkers for therapeutic interventions in traumatic brain injury[J]. Histol Histopathol, 2020, 35(10):1105-1113. doi:10.14670/HH-18-229.
[9]	中华医学会神经病学分会, 中华医学会神经病学分会脑血管病学组. 中国急性缺血性脑卒中诊治指南2018[J]. 中华神经科杂志, 2018, 51(9):666-682.
	Chinese Society of Neurology,Chinese Society of Neurology, Cerebrovascular Disease Group. Chinese guidelines for diagnosis and treatment of acute ischemic stroke 2018[J]. Chinese Journal of Neurology, 2018, 51(9):666-682. doi:10.3760/cma.j.issn.1006-7876.2018.09.004.
[10]	辛奕, 苗重昌, 顾艳, 等. CTA联合CTPI评估急性缺血性脑卒中患者侧支循环和临床预后[J]. 放射学实践, 2022, 37(8):966-970.
	XIN Y, MIAO Z C, GU Y, et al. Application of CTA combined with CT perfusion imaging in the evaluation of collateral circulation and clinical prognosis in patients with acute ischemic stroke[J]. Radiol Practic, 2022, 37(8):966-970. doi:10.13609/j.cnki.1000-0313.2022.08.008.
[11]	SAVER J L, CHAISINANUNKUL N, CAMPBELL B C V, et al. Standardized nomenclature for modified rankin scale global disability outcomes:consensus recommendations from stroke therapy academic industry roundtable Ⅺ[J]. Stroke, 2021, 52(9):3054-3062. doi:10.1161/STROKEAHA.121.034480.
[12]	TAKEBAYASHI T, TAKAHASHI K, AMANO S, et al. Robot-assisted training as self-training for upper-limb hemiplegia in chronic stroke:a randomized controlled trial[J]. Stroke, 2022, 53(7):2182-2191. doi:10.1161/STROKEAHA.121.037260.
[13]	肖雨倩, 孙可心, 万俊, 等. RNA m6A甲基化在卒中后认知障碍中的研究进展[J]. 天津医药, 2024, 52(3):331-336.
	XIAO Y Q, SUN K X, WAN J, et al. Research progress of RNA m6A methylation in post-stroke cognitive impairment[J]. Tianjin Med J, 2024, 52(3):331-336. doi:10.11958/20230780.
[14]	DUSENBURY W, ALEXANDROV A W. Clinical localization of stroke[J]. Crit Care Nurs Clin North Am, 2020, 32(1):1-19. doi:10.1016/j.cnc.2019.10.001.
[15]	刘芮, 王汉, 陈艳, 等. CTA和CTP评估急性缺血性脑卒中侧支循环状态及与预后的关系[J]. 中国实用神经疾病杂志, 2024, 27(4):442-447.
	LIU R, WANG H, CHEN Y, et al. CTA and CTP in evaluating collateral circulation status of acute ischemic stroke and relationship with prognosis[J]. Chinese Journal of Practical Nervous Diseases, 2024, 27(4):442-447. doi:10.12083/SYSJ.231107.
[16]	杨莎莎, 林惠卿, 方欣欣, 等. 急性缺血性脑卒中预后的影响因素及与基于CTP评估侧支循环状态的关系[J]. 中国实用神经疾病杂志, 2022, 25(10):1196-1202.
	YANG S S, LIN H Q, FANG X X, et al. Influencing factors of prognosis in AIS patients and its relationship with collateral circulation status based on CTP assessment[J]. Chinese Journal of Practical Nervous Diseases, 2022, 25(10):1196-1202. doi:10.12083/SYSJ.22094.
[17]	XU C M, LUO Y L, LI S, et al. Multifunctional neuron-specific enolase:its role in lung diseases[J]. Biosci Rep, 2019, 39(11):BSR20192732. doi:10.1042/BSR20192732.
[18]	HORVAT S, KOS J, PIŠLAR A. Multifunctional roles of γ-enolase in the central nervous system:more than a neuronal marker[J]. Cell Biosci, 2024, 14(1):61. doi:10.1186/s13578-024-01240-6.
[19]	HAQUE A, POLCYN R, MATZELLE D, et al. New insights into the role of neuron-specific enolase in neuro-inflammation,neurodegeneration,and neuroprotection[J]. Brain Sci, 2018, 8(2):33. doi:10.3390/brainsci8020033.
[20]	MCCOY H M, POLCYN R, BANIK N L, et al. Regulation of enolase activation to promote neural protection and regeneration in spinal cord injury[J]. Neural Regen Res, 2023, 18(7):1457-1462. doi:10.4103/1673-5374.361539.
[21]	刘洋, 王妍, 滕玉欢, 等. 血清NSE、Hcy及GAP-43水平与老年缺血性脑卒中的相关性[J]. 中国老年学杂志, 2023, 43(20):4885-4887.
	LIU Y, WANG Y, TENG Y H, et al. Correlation of serum NSE,Hcy and GAP-43 levels with ischaemic stroke in the elderly[J]. Chinese Journal of Gerontology, 2023, 43(20):4885-4887. doi:10.3969/j.issn.1005-9202.2023.20.007.
[22]	陈河盛, 温铖彩, 温晓华, 等. 炎症指标联合血清神经元特异性烯醇化酶对急性脑出血老年患者预后的预测价值[J]. 中国老年学杂志, 2024, 44(15):3605-3609.
	CHEN H S, WEN Y C, WEN X H, et al. Predictive value of inflammatory indices combined with serum neuron-specific enolase in the prognosis of elderly patients with acute cerebral haemorrhag[J]. Chinese Journal of Gerontology, 2024, 44(15):3605-3609. doi:10.3969/j.issn.1005-9202.2024.15.006.

组别			n		男性			年龄/岁				BMI/（kg/m²）
CC良好组			67		35（52.24）			57.76±7.59				22.14±1.32
CC不良组			39		21（53.85）			58.15±8.16				22.31±1.25
χ²或t					0.026			0.248				0.652
组别		吸烟史				高血压					糖尿病			冠心病
CC良好组		19（28.36）				33（49.25）					25（37.31）			16（23.88）
CC不良组		14（35.90）				20（51.28）					16（41.03）			13（33.33）
χ²		0.654				0.041					0.143			1.108
组别				高胆固醇血症					发病至入院时间
组别				高胆固醇血症					<4.5 h				4.5~6 h
CC良好组				14（20.90）					30（44.78）				37（55.22）
CC不良组				8（20.51）					15（38.46）				24（61.54）
χ²				0.002					0.402
组别	闭塞血管位置
组别	大脑中动脉						颈内动脉			大脑中动脉＋颈内动脉
CC良好组	38（56.72）						17（25.37）			12（17.91）
CC不良组	19（48.72）						12（30.77）			8（20.51）
χ²	0.644

组别			n		男性			年龄/岁				BMI/（kg/m²）
CC良好组			67		35（52.24）			57.76±7.59				22.14±1.32
CC不良组			39		21（53.85）			58.15±8.16				22.31±1.25
χ²或t					0.026			0.248				0.652
组别		吸烟史				高血压					糖尿病			冠心病
CC良好组		19（28.36）				33（49.25）					25（37.31）			16（23.88）
CC不良组		14（35.90）				20（51.28）					16（41.03）			13（33.33）
χ²		0.654				0.041					0.143			1.108
组别				高胆固醇血症					发病至入院时间
组别				高胆固醇血症					<4.5 h				4.5~6 h
CC良好组				14（20.90）					30（44.78）				37（55.22）
CC不良组				8（20.51）					15（38.46）				24（61.54）
χ²				0.002					0.402
组别	闭塞血管位置
组别	大脑中动脉						颈内动脉			大脑中动脉＋颈内动脉
CC良好组	38（56.72）						17（25.37）			12（17.91）
CC不良组	19（48.72）						12（30.77）			8（20.51）
χ²	0.644

组别	n	rCBF	rCBV	rTTP	rMTT	NSE/（μg/L）
CC良好组	67	0.68±0.16	1.27±0.32	0.91±0.21	1.93±0.45	28.12±7.01
CC不良组	39	0.49±0.13	0.89±0.24	1.18±0.23	2.45±0.56	43.68±10.37
t		6.300^＊＊	6.432^＊＊	6.163^＊＊	5.236^＊＊	9.202^＊＊

组别	n	rCBF	rCBV	rTTP	rMTT	NSE/（μg/L）
CC良好组	67	0.68±0.16	1.27±0.32	0.91±0.21	1.93±0.45	28.12±7.01
CC不良组	39	0.49±0.13	0.89±0.24	1.18±0.23	2.45±0.56	43.68±10.37
t		6.300^＊＊	6.432^＊＊	6.163^＊＊	5.236^＊＊	9.202^＊＊

组别	n		CC状态				NSE/ （μg/L）		mRS评分/ 分
组别	n		良好		不良		NSE/ （μg/L）		mRS评分/ 分
预后良好组	56		49（87.50）		7（12.50）		25.95±6.82		1.27±0.70
预后不良组	50		18（10.00）		32（90.00）		42.67±10.84		4.86±1.01
χ²或t			30.126^＊＊				9.610^＊＊		21.452^＊＊
组别		CTP参数
组别		rCBF		rCBV		rTTP		rMTT
预后良好组		0.69±0.15		1.34±0.36		0.87±0.19		1.85±0.43
预后不良组		0.51±0.10		0.89±0.25		1.16±0.24		2.44±0.52
t		7.178^＊＊		7.389^＊＊		6.932^＊＊		6.390^＊＊
