PM2.5通过TLR4破坏自噬流加重Raw264.7巨噬细胞炎症反应

doi:10.11958/20220086

天津医药 ›› 2022, Vol. 50 ›› Issue (11): 1139-1145.doi: 10.11958/20220086

PM_2.5通过TLR4破坏自噬流加重Raw264.7巨噬细胞炎症反应

黄秋阳¹(), 王伟¹, 罗书², 郑文武¹, 冯健¹, 叶强¹, 郑舒展¹^,^△()

1 西南医科大学附属医院心血管内科（邮编646000）
2 四川省泸州市生态环境监测中心站

收稿日期:2022-01-24 修回日期:2022-06-14 出版日期:2022-11-15 发布日期:2022-11-11
通讯作者: 郑舒展 E-mail:2274152499@qq.com;toshuzhan@126.com
作者简介:黄秋阳（1993），女，硕士在读，主要从事心血管疾病研究。E-mail：2274152499@qq.com

PM_2.5 aggravates the inflammatory response of Raw264.7 macrophages by disrupting autophagic flow through TLR4

HUANG Qiuyang¹(), WANG Wei¹, LUO Shu², ZHENG Wenwu¹, FENG Jian¹, YE Qiang¹, ZHENG Shuzhan¹^,^△()

1 Department of Cardiovascular Medicine, Affiliated Hospital of Southwest Medical University, Luzhou 646000, China
2 Luzhou City Ecological Environment Monitoring Center Station, Sichuan Province

Received:2022-01-24 Revised:2022-06-14 Published:2022-11-15 Online:2022-11-11
Contact: ZHENG Shuzhan E-mail:2274152499@qq.com;toshuzhan@126.com

黄秋阳, 王伟, 罗书, 郑文武, 冯健, 叶强, 郑舒展. PM_2.5通过TLR4破坏自噬流加重Raw264.7巨噬细胞炎症反应[J]. 天津医药, 2022, 50(11): 1139-1145.

HUANG Qiuyang, WANG Wei, LUO Shu, ZHENG Wenwu, FENG Jian, YE Qiang, ZHENG Shuzhan. PM_2.5 aggravates the inflammatory response of Raw264.7 macrophages by disrupting autophagic flow through TLR4[J]. Tianjin Medical Journal, 2022, 50(11): 1139-1145.

摘要/Abstract

摘要：

目的探讨PM_2.5对Raw264.7巨噬细胞自噬及炎症反应的影响及机制。方法 CCK-8检测PM_2.5对Raw264.7巨噬细胞活性的影响，透射电镜观察自噬结构；Ad-mCherry-GFP-LC3B转染细胞后荧光显微镜观察自噬通量，以探讨PM_2.5对巨噬细胞活性和自噬流的影响。再设置对照组、PM_2.5组、雷帕霉素（Rap，自噬诱导剂）组、羟氯喹（HCQ，自噬抑制剂）组、PM_2.5+HCQ组、PM_2.5+TAK-242[Toll样受体4（TLR4）抑制剂]组。Western blot法检测自噬相关蛋白，包括微管相关轻链蛋白3比值（LC3Ⅱ/Ⅰ）、p62、组织蛋白酶B（CTSB）、溶酶体膜蛋白2（LAMP2）和炎症相关蛋白，包括Toll样受体4（TLR4）、核苷酸结合域样受体蛋白3（NLRP3）的表达水平；酶联免疫吸附试验检测相关炎性因子白细胞介素（IL）-1β、IL-18、IL-10分泌水平。结果 Raw264.7巨噬细胞活性随着PM_2.5浓度的增加和作用时间的延长而降低。透射电镜观察到PM_2.5组有较多自噬空泡和双膜自噬体，自噬溶酶体少见，且荧光显微镜下PM_2.5组绿色荧光淬灭不明显，Merge后黄红色荧光比值高于对照组和Rap组（P<0.05）。相较于对照组，PM_2.5组NLRP3、LC3Ⅱ/Ⅰ、p62、CTSB、IL-1β、IL-18的表达上调，LAMP2、IL-10表达下调（P<0.05），而HCQ抑制自噬的同时，促进NLRP3、IL-1β、IL-18的表达，抑制IL-10表达（P<0.05）。相较于对照组、PM_2.5组和HCQ组，PM_2.5+HCQ组NLRP3、IL-1β、IL-18的上调及IL-10下调更为显著（P<0.05）。此外，PM_2.5组TLR4表达高于对照组，TAK-242抑制TLR4后NLRP3、LC3Ⅱ/Ⅰ、p62、CTSB、IL-1β、IL-18的表达较PM_2.5组下调，LAMP2和IL-10的表达上调（P<0.05）。结论 PM_2.5可呈时间和浓度依赖性地降低巨噬细胞活性；且PM_2.5诱导Raw264.7巨噬细胞发生自噬，但阻断自噬流，加重巨噬细胞炎症反应，且该过程可能由TLR4介导。

关键词: 颗粒物, 自噬, 炎症, Toll样受体4, NLR家族，热蛋白结构域包含蛋白3, 动脉粥样硬化, PM_2.5

Abstract:

Objective To explore the effect and mechanism of PM_2.5 on the autophagy and inflammatory response of Raw264.7 macrophages. Methods CCK-8 was used to detect the effect of PM_2.5 on the viability of Raw264.7 cells, and transmission electron microscopy was used to observe the autophagy structure. The autophagic flux was observed by fluorescence microscope after Ad-mCherry-GFP-LC3B transfection to explore the effect of PM_2.5 on macrophage activity and autophagy. Then the blank control group, the PM_2.5 group, the rapamycin (Rap, autophagy inducer) group, the hydroxychloroquine (HCQ, autophagy inhibitor) group, the PM_2.5+HCQ group and PM_2.5+TAK-242 [Toll-like receptor 4 (TLR4) inhibitor] group were set. Western blot method was used to detect levels of autophagy-related proteins, including microtubule-associated light chain protein 3 ratio (LC3Ⅱ/Ⅰ), p62, cathepsin B (CTSB), lysosomal membrane protein 2 (LAMP2) and inflammation-related proteins TLR4 and nucleotide binding Domain-like receptor protein 3 (NLRP3)]. ELISA method was used to detect the levels of inflammatory factors, including interleukin (IL)-1β, IL-18 and IL-10. Results The activity of Raw264.7 macrophages decreased with the increase of PM_2.5 concentration and the prolonged action time. Transmission electron microscopy showed that there were more autophagic vacuoles and double-membrane autophagosomes in the PM_2.5 group, while autophagic lysosomes were rare, and under the fluorescence microscope, the ratio of yellow fluorescent dots to red fluorescent dots was higher in the PM_2.5 group than that in the control group and the Rap group (P<0.05). Compared with the blank control group, the expressions levels of NLRP3, LC3Ⅱ/Ⅰ, p62, CTSB, IL-1β and IL-18 were up-regulated in the PM_2.5 group, and the expressions of LAMP2 and IL-10 were down-regulated (P<0.05). While HCQ inhibited autophagy, it promoted the expression of NLRP3, IL-1β and IL-18, and inhibited the expression of IL-10 (P<0.05). Compared with the blank control group, the PM_2.5 group and the HCQ group, NLRP3, IL-1β and IL-18 were significantly up-regulated and IL-10 was significantly down-regulated in the PM_2.5+HCQ group (P<0.05). In addition, the expression of TLR4 was high in the PM_2.5 group. Expressions of NLRP3, LC3Ⅱ/Ⅰ, p62, CTSB, IL-1β and IL-18 were down-regulated after TLR4 was inhibited by TAK-242, and expressions of LAMP2 and IL-10 were up-regulated (P<0.05). Conclusion PM_2.5 reduces macrophage activity in a time- and concentration-dependent manner. PM_2.5 induces autophagy in Raw264.7 macrophages, but blocks autophagic flow and aggravates the inflammatory response of macrophages, which may be mediated by TLR4.

Key words: particulate matter, autophagy, inflammation, Toll-like receptor 4, NLR family, pyrin domain-containing 3 protein, atherosclerosis, PM_2.5

中图分类号:

R364.5

图/表 8

表1 2组不同时间PM2.5对巨噬细胞活性影响的比较 (n=3,%, $\bar{x}\pm s$)

Tab.1 Comparison of the effect of PM2.5 on macrophage activity at different times between the two groups

组别	0 h	6 h	12 h	18 h	24 h	48 h
对照组	100.0±1.1	99.0±1.2	101.0±1.1	100.0±1.4	100.0±1.3	100.0±1.2
PM_2.5组	100.0±1.6	91.0±2.0	82.3±3.2	67.0±2.4	52.0±2.3	41.0±2.8
t	0.292	1.345^＊	3.363^＊	4.178^＊	4.765^＊	5.193^＊

图1 透射电镜下观察自噬结构（×8 000）

Fig.1 Observation of autophagy structure under transmission electron microscope (×8 000)

图2 Ad-mCherry-GFP-LC3B腺病毒转染后Raw264.7细胞内自噬情况的变化

Fig.2 Changes of autophagy in Raw264.7 cells transfected with Ad-mCherry-GFP-LC3B

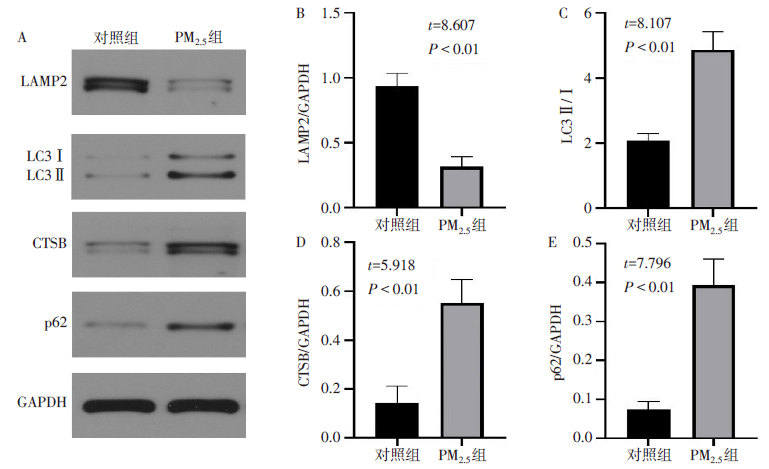

图3 Western blot检测各组LC3、CTSB、p62、LAMP2蛋白表达 A：Western blot检测图；B~E分别为LAMP2、LC3、CTSB、p62蛋白表达半定量分析。

Fig.3 Western blot detection of LAMP2, LC3, CTSB, p62 protein expression in each group

表2 各组炎性因子表达水平比较 (n=3,ng/L, $\bar{x}\pm s$)

Tab.2 Comparison of expressions of inflammatory factor levels between the four groups

组别	IL-1β	IL-18	IL-10
对照组	25.47±8.70	25.32±5.79	45.59±7.55
PM_2.5组	156.79±13.77^a	129.71±9.75^a	24.31±3.82^a
HCQ组	124.09±11.46^a	106.57±9.13^a	19.32±3.40^a
PM_2.5+HCQ组	205.55±29.13^abc	218.54±11.56^abc	7.24±2.52^abc
F	55.819^＊＊	217.096^＊＊	61.207^＊＊

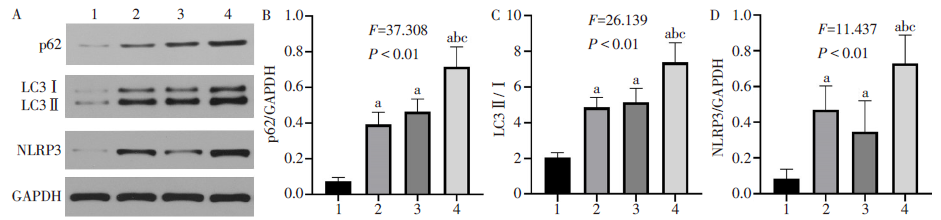

图4 Western blot检测自噬蛋白、NLRP3蛋白表达 A：Western blot检测图；B~D为p62、LC3、NLRP3蛋白表达半定量分析；1为对照组，2为PM2.5组，3为HCQ组，4为PM2.5+HCQ组；a与对照组比较，b与PM2.5组比较，c与HCQ组比较，P<0.05。

Fig.4 Western blot detection of expression levels of autophagy and NLRP3 protein

表3 抑制TLR4后各组炎症因子水平比较 (n=3,ng/L, $\bar{x}\pm s$)

Tab.3 Comparison of inflammatory factor levels after inhibition of TLR4 between the three groups

组别	IL-1β	IL-18	IL-10
对照组	25.54±8.70	24.99±5.81	46.11±7.56
PM_2.5组	157.19±11.84^a	130.21±9.65^a	23.10±4.12^a
PM_2.5+TAK-242组	74.54±6.47^ab	72.56±7.53^ab	86.92±10.13^ab
F	129.037^＊＊	132.806^＊＊	52.373^＊＊

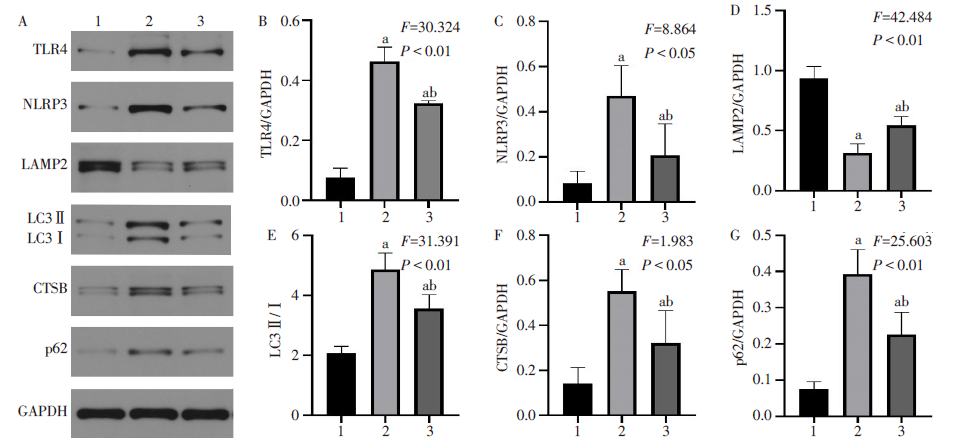

图5 抑制TLR4后Western blot检测各组自噬和炎症相关蛋白表达 A：Western blot检测图；B~G分别为TLR4、NLRP3、LAMP2、LC3、CTSB、p62蛋白表达半定量分析；1为对照组，2为PM2.5组，3为PM2.5+TAK-242组；a与对照组比较，b与PM2.5组比较，P<0.05。

Fig.5 After inhibiting TLR4, the expression of autophagy and inflammation-related proteins detected by Western blot assay

参考文献 24

[1]	KOLLANUS V, PRANK M, GENS A, et al. Mortality due to Vegetation Fire-Originated PM_2.5 Exposure in Europe-Assessment for the Years 2005 and 2008[J]. Environ Health Perspect, 2017, 125(1):30-37. doi:10.1289/EHP194.
[2]	HOEK G, KRISHNAN R M, BEELEN R, et al. Long-term air pollution exposure and cardio- respiratory mortality:a review[J]. Environ Health, 2013, 12(1):43. doi:10.1186/1476-069X-12-43.
[3]	GENG J, LIU H, GE P, et al. PM2.5 promotes plaque vulnerability at different stages of atherosclerosis and the formation of foam cells via TLR4/MyD88/NFκB pathway[J]. Ecotoxicol Environ Saf, 2019, 176:76-84. doi:10.1016/j.ecoenv.2019.03.068.
[4]	ZHU X C, ZHAO P, LU Y G, et al. Potential injurious effects of the fine particulate PM2.5 on the progression of atherosclerosis in apoE-deficient mice by activating platelets and leukocytes[J]. Arch Med Sci, 2019, 15(1):250-261. doi:10.5114/aoms.2018.81039.
[5]	GOTTLIEB R A, MENTZER R M. Autophagy during cardiac stress: joys and frustrations of autophagy[J]. Annu Rev Physiol, 2010, 72:45-59. doi:10.1146/annurev-physiol-021909-135757.
[6]	EVANS T D, JEONG S J, ZHANG X Y, et al. TFEB and trehalose drive the macrophage autophagy-lysosome system to protect against atherosclerosis[J]. Autophagy, 2018, 14(4):724-726. doi:10.1080/15548627.2018.1434373.
[7]	MARTINET W, COORNAERT I, PUYLAERT P, et al. Macrophage death as a pharmacological target in atherosclerosis[J]. Front Pharmacol, 2019, 10:306. doi:10.3389/fphar.2019.00306.
[8]	DAI P Y, SHEN D, SHEN J K, et al. The roles of Nrf2 and autophagy in modulating inflammation mediated by TLR4 - NFκB in A549 cell exposed to layer house particulate matter 2.5 (PM_2.5)[J]. Chemosphere, 2019, 235:1134-1145. doi:10.1016/j.chemosphere.2019.07.002.
[9]	ZHOU Z, SHAO T, QIN M, et al. The effects of autophagy on vascular endothelial cells induced by airborne PM2.5[J]. J Environ Sci (China), 2018, 66:182-187. doi:10.1016/j.jes.2017.05.019.
[10]	LANDRIGAN P J, FULLER R, ACOSTA N J R, et al. The Lancet Commission on pollution and health[J]. Lancet, 2018, 391(10119):462-512. doi:10.1016/S0140-6736(17)32345-0.
[11]	MCGUINN L A, SCHNEIDER A, MCGARRAH R W, et al. Association of long-term PM_2.5 exposure with traditional and novel lipid measures related to cardiovascular disease risk[J]. Environ Int, 2019, 122:193-200. doi:10.1016/j.envint.2018.11.001.
[12]	GOLD D R, LITONJUA A, SCHWARTZ J, et al. Ambient pollution and heart rate variability[J]. Circulation, 2000, 101(11):1267-1273. doi:10.1161/01.cir.101.11.1267.
[13]	ZHANG J, LIANG S, NING R, et al. PM_2.5-induced inflammation and lipidome alteration associated with the development of atherosclerosis based on a targeted lipidomic analysis[J]. Environ Int, 2020, 136:105444. doi:10.1016/j.envint.2019.105444.
[14]	RAO X, ZHONG J, MAISEYEU A, et al. CD36-dependent 7-ketocholesterol accumulation in macrophages mediates progression of atherosclerosis in response to chronic air pollution exposure[J]. Circ Res, 2014, 115(9):770-780. doi:10.1161/CIRCRESAHA.115.304666.
[15]	TABAS I. Consequences and therapeutic implications of macrophage apoptosis in atherosclerosis: the importance of lesion stage and phagocytic efficiency[J]. Arterioscler Thromb Vasc Biol, 2005, 25(11):2255-2264. doi:10.1161/01.ATV.0000184783.04864.9f.
[16]	ENDO Y, FURUTA A, NISHINO I. Danon disease:a phenotypic expression of LAMP-2 deficiency[J]. Acta Neuropathol, 2015, 129(3):391-398. doi:10.1007/s00401-015-1385-4.
[17]	VINDIS C. Autophagy:an emerging therapeutic target in vascular diseases[J]. Br J Pharmacol, 2015, 172(9):2167-2178. doi:10.1111/bph.13052.
[18]	WANG Y, ZHONG Y, LIAO J, et al. PM2.5-related cell death patterns[J]. Int J Med Sci, 2021, 18(4):1024-1029. doi:10.7150/ijms.46421.
[19]	HOSEINI Z, SEPAHVAND F, RASHIDI B, et al. NLRP3 inflammasome:Its regulation and involvement in atherosclerosis[J]. J Cell Physiol, 2018, 233(3):2116-2132. doi:10.1002/jcp. 25930.
[20]	ROSHAN M H, TAMBO A, PACE N P. The Role of TLR2, TLR4, and TLR9 in the pathogenesis of atherosclerosis[J]. Int J Inflam, 2016, 2016:1532832. doi:10.1155/2016/1532832.
[21]	SAITOH T, AKIRA S. Regulation of inflammasomes by autophagy[J]. J Allergy Clin Immunol, 2016, 138(1):28-36. doi:10.1016/j.jaci.2016.05.009.
[22]	BIASIZZO M, KOPITAR-JERALA N. Interplay between NLRP3 inflammasome and autophagy[J]. Front Immunol, 2020, 11:591803. doi:10.3389/fimmu.2020.591803.
[23]	LAI M Y, YAO H, SHAH S Z A, et al. The NLRP3-Caspase 1 inflammasome negatively regulates autophagy via TLR4-TRIF in prion peptide-infected microglia[J]. Front Aging Neurosci, 2018, 10:116. doi:10.3389/fnagi.2018.00116.
[24]	LI M Z, HUA Q H, SHAO Y T, et al. Circular RNA circBbs9 promotes PM_2.5-induced lung inflammation in mice via NLRP3 inflammasome activation[J]. Environ Int, 2020, 143:105976.doi:10.1016/j.envint.2020.105976.
