Protective effect and mechanism of dual-specificity phosphatase 9 on myocardial injury in mice with type 2 diabetic cardiomyopathy

doi:10.11958/20253111

Abstract

Abstract:

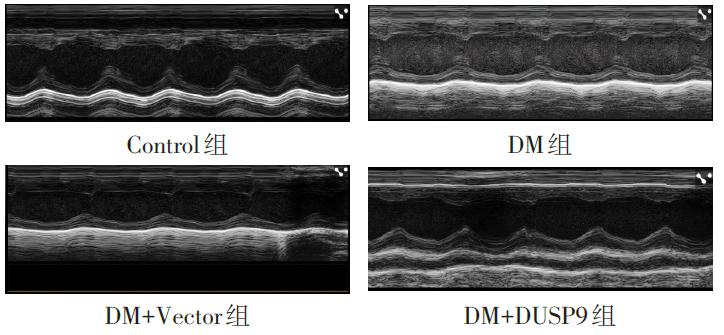

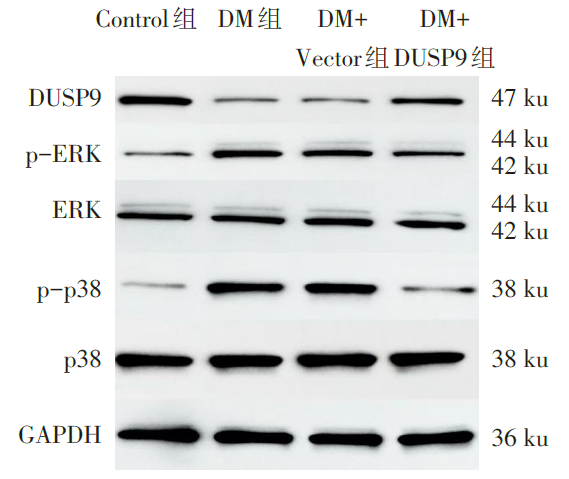

Objective To investigate the protective effect and underlying mechanism of dual-specificity phosphatase 9 (DUSP9) on myocardial injury in mice with type 2 diabetic cardiomyopathy (DCM). Methods A mouse model of type 2 diabetes was established using a high-fat, high-sugar diet combined with intraperitoneal injection of streptozotocin (STZ). After successful modeling, the mice were randomly divided into the control group (control), the diabetes mellitus (DM) group, the diabetes + empty vector (DM+Vector) group and the diabetes + DUSP9 overexpression (DM+DUSP9) group. Following a 12-week intervention via tail vein injection of AAV9-DUSP9 or empty viral vector, cardiac function was assessed by echocardiography. The body weight, fasting blood glucose and heart mass ratio were detected in mice of each group. Heart tissue samples were collected for histological examination using HE and WGA staining to observe myocardial pathological changes. The levels of inflammatory cytokines IL-6 and TNF-α in myocardial tissue were measured by ELISA. Myocardial cell apoptosis was detected by TUNEL assay. The phosphorylation levels of ERK and p38 proteins were evaluated by Western blot assay. Mitochondrial morphological changes were observed via transmission electron microscopy. Results Compared with the control group, significantly increased heart weight, heart-to-body weight ratio, cardiomyocyte cross-sectional area, levels of IL-6 and TNF-α in myocardial tissue, myocardial cell apoptosis rate and expressions of p-ERK and p-p38 in myocardial tissue were observed in the DM group and the DM+Vector group, and left ventricular ejection fraction (LVEF) and left ventricular fractional shortening (LVFS) were significantly decreased (P < 0.05). Compared with the DM+Vector group, the DM+DUSP9 group exhibited significantly decreased heart weight, heart-to-body weight ratio, cardiomyocyte cross-sectional area, levels of IL-6 and TNF-α, myocardial cell apoptosis rate and expressions of p-ERK and p-p38, while LVEF and LVFS were significantly increased (P < 0.05). Conclusion DUSP9 overexpression improves cardiac function in diabetic mice. The mechanism may be related to the inhibition of ERK and p38 phosphorylation by DUSP9, thereby alleviating myocardial inflammation, apoptosis and mitochondrial damage in diabetic cardiomyopathy mice.

Key words: diabetic cardiomyopathies, mitogen-activated protein kinase kinases, apoptosis, mitochondria, dual-specificity phosphatases, inflammation

CLC Number:

R542.2，R587.2

Figures/Tables 10

References 20

[1]	GUAN X, ZHOU C, ZHUO X, et al. The heart of diabetes: unraveling metabolic drivers of cardiomyopathy[J]. Cardiovasc Diabetol Endocrinol Rep, 2025, 11(1):18. doi:10.1186/s40842-025-00231-x.
[2]	中华医学会糖尿病学分会. 中国糖尿病防治指南(2024版)[J]. 中华糖尿病杂志, 2025, 17(1):16-139.
	Chinese Diabetes Society. Chinese guidelines for the prevention and treatment of diabetes(2024 edition)[J]. Chin J Diabetes Mellitus, 2025, 17(1):16-139. doi:10.3760/cma.j.cn115791-20241203-00705.
[3]	JIA G, HILL M A, SOWERS J R. Diabetic cardiomyopathy:An update of mechanisms contributing to this clinical entity[J]. Circ Res, 2018, 122(4):624-638. doi:10.1161/CIRCRESAHA.117.311586.
[4]	BELLEMARE M, BOURCIER L, IGLESIES-GRAU J, et al. Mechanisms of diabetic cardiomyopathy:Focus on inflammation[J]. Diabetes Obes Metab, 2025, 27(5):2326-2338. doi:10.1111/dom.16242.
[5]	WANG L, SHI H, ZHAO C C, et al. Astragaloside Ⅳ protects diabetic cardiomyopathy against inflammation and apoptosis via regulating TLR4/MyD88/NF-κB signaling pathway[J]. Journal of Functional Foods, 2022, 88:104905. doi:10.1016/j.jff.2021.104905.
[6]	XU H, LIU T, DAI Y, et al. The role of ERK1/2 signaling in diabetes:pathogenic and therapeutic implications[J]. Front Pharmacol, 2025, 16:1600251. doi:10.3389/fphar.2025.1600251.
[7]	ZENG Y, LI Y, JIANG W, et al. Molecular mechanisms of metabolic dysregulation in diabetic cardiomyopathy[J]. Front Cardiovasc Med, 2024, 11:1375400. doi:10.3389/fcvm.2024.1375400.
[8]	吴宾, 杨自更, 王杰, 等. 双特异性磷酸酶9对低氧性肺动脉高压小鼠心肺损伤的改善作用实验研究[J]. 陕西医学杂志, 2024, 53(12):1593-1598.
	WU B, YANG Z G, WANG J, et al. Improvement effects of dual specificity phosphatase9 on cardiopulmonary injury in mice with hypoxicpulmonary hypertension[J]. Shaanxi Medical Journal, 2024, 53(12):1593-1598. doi:10.3969/j.issn.1000-7377.2024.12.002.
[9]	张吟, 黄丹丹, 张淑芬, 等. C57BL/6J糖尿病小鼠模型的优化研究[J]. 中国现代应用药学, 2019, 36(6):655-660.
	ZHANG Y, HUANG D D, ZHANG S F, et al. Optimization of C57BL/6J diabetic mice model[J]. Chin J Mod Appl Pharm, 2019, 36(6):655-660. doi:10.13748/j.cnki.issn1007-7693.2019.06.003.
[10]	SEFEROVIĆ P M, PAULUS W J, ROSANO G, et al. Diabetic myocardial disorder. A clinical consensus statement of the Heart Failure Association of the ESC and the ESC Working Group on myocardial & pericardial diseases[J]. Eur J Heart Fail, 2024, 26(9):1893-1903. doi:10.1002/ejhf.3347.
[11]	MIZUSHIGE K, YAO L, NOMA T, et al. Alteration in left ventricular diastolic filling and accumulation of myocardial collagen at insulin-resistant prediabetic stage of a type II diabetic rat model[J]. Circulation, 2000, 101(8):899-907. doi:10.1161/01.cir.101.8.899.
[12]	VAN DE WEIJER T, SCHRAUWEN-HINDERLING V B, SCHRAUWEN P. Lipotoxicity in type 2 diabetic cardiomyopathy[J]. Cardiovasc Res, 2011, 92(1):10-18. doi:10.1093/cvr/cvr212.
[13]	ZHANG L, AI C, BAI M, et al. NLRP3 inflammasome/pyroptosis:A key driving force in diabetic cardiomyopathy[J]. Int J Mol Sci, 2022, 23(18):10632. doi:10.3390/ijms231810632.
[14]	KHOUBAI F Z, GROSSET C F. DUSP9,a dual-specificity phosphatase with a key role in cell biology and human diseases[J]. Int J Mol Sci, 2021, 22(21):11538. doi:10.3390/ijms222111538.
[15]	WANG J, WEI T, ZHANG W, et al. Inhibition of miR-194-5p avoids DUSP9 downregulation thus limiting sepsis-induced cardiomyopathy[J]. Sci Rep, 2024, 14(1):20313. doi:10.1038/s41598-024-71166-z.
[16]	YE P, XIANG M, LIAO H, et al. Dual-specificity phosphatase 9 protects against nonalcoholic fatty liver disease in mice through ASK1 suppression[J]. Hepatology, 2019, 69(1):76-93. doi:10.1002/hep.30198.
[17]	ROSTAMI A, PALOMER X, PIZARRO-DELGADO J, et al. PPARβ/δ prevents inflammation and fibrosis during diabetic cardiomyopathy[J]. Pharmacol Res, 2024, 210:107515. doi:10.1016/j.phrs.2024.107515.
[18]	GUI C, REN Y, CHEN J, et al. p38 MAPK-DRP1 signaling is involved in mitochondrial dysfunction and cell death in mutant A53T α-synuclein model of Parkinson's disease[J]. Toxicol Appl Pharmacol, 2020, 388:114874. doi:10.1016/j.taap.2019.114874.
[19]	WANG T, LI N, YUAN L, et al. MALAT1/miR-185-5p mediated high glucose-induced oxidative stress,mitochondrial injury and cardiomyocyte apoptosis via the RhoA/ROCK pathway[J]. J Cell Mol Med, 2023, 27(17):2495-2506. doi:10.1111/jcmm.17835.
[20]	SHU S, CUI H, LIU Z, et al. Suppression of RCAN1 alleviated lipid accumulation and mitochondrial fission in diabetic cardiomyopathy[J]. Metabolism, 2024, 158:155977. doi:10.1016/j.metabol.2024.155977.

组别	体质量/ g	空腹血糖/ （mmol/L）	心脏质量/mg	心脏体质量比/（mg/g）
Control组	30.70±0.73	6.48±0.72	119.05±5.18	4.04±0.35
DM组	24.21±2.66^a	25.96±2.58^a	151.79±8.14^a	5.68±0.29^a
DM+Vector组	23.10±1.94^a	26.24±3.24^a	149.55±7.81^a	5.85±0.42^a
DM+DUSP9组	27.35±1.63^a	24.57±1.60^a	137.03±6.34^ab	4.82±0.36^ab
F	53.480^＊＊	272.300^＊＊	69.620^＊＊	81.970^＊＊

组别	体质量/ g	空腹血糖/ （mmol/L）	心脏质量/mg	心脏体质量比/（mg/g）
Control组	30.70±0.73	6.48±0.72	119.05±5.18	4.04±0.35
DM组	24.21±2.66^a	25.96±2.58^a	151.79±8.14^a	5.68±0.29^a
DM+Vector组	23.10±1.94^a	26.24±3.24^a	149.55±7.81^a	5.85±0.42^a
DM+DUSP9组	27.35±1.63^a	24.57±1.60^a	137.03±6.34^ab	4.82±0.36^ab
F	53.480^＊＊	272.300^＊＊	69.620^＊＊	81.970^＊＊

组别	LVEDD/ mm	LVESD/ mm	LVEF/ %	LVFS/ %
Control组	3.55±0.15	2.50±0.13	75.05±4.11	38.18±3.02
DM组	4.55±0.10^a	3.39±0.09^a	55.43±2.04^a	22.46±2.16^a
DM+Vector组	4.43±0.21^a	3.50±0.14^a	53.77±3.07^a	23.49±3.07^a
DM+DUSP9组	4.08±0.12^ab	3.03±0.11^ab	60.78±2.01^ab	30.29±1.93^ab
F	132.600^＊＊	214.800^＊＊	162.500^＊＊	117.600^＊＊

组别	LVEDD/ mm	LVESD/ mm	LVEF/ %	LVFS/ %
Control组	3.55±0.15	2.50±0.13	75.05±4.11	38.18±3.02
DM组	4.55±0.10^a	3.39±0.09^a	55.43±2.04^a	22.46±2.16^a
DM+Vector组	4.43±0.21^a	3.50±0.14^a	53.77±3.07^a	23.49±3.07^a
DM+DUSP9组	4.08±0.12^ab	3.03±0.11^ab	60.78±2.01^ab	30.29±1.93^ab
F	132.600^＊＊	214.800^＊＊	162.500^＊＊	117.600^＊＊

组别	IL-6	TNF-α
Control组	15.3±2.1	20.1±2.5
DM组	48.7±5.3^a	65.3±7.2^a
DM+Vector组	47.9±4.8^a	63.8±6.5^a
DM+DUSP9组	28.6±3.2^ab	35.4±4.1^ab
F	238.100^＊＊	251.400^＊＊
